New Aquila Aviation A211 Aircraft For Sale

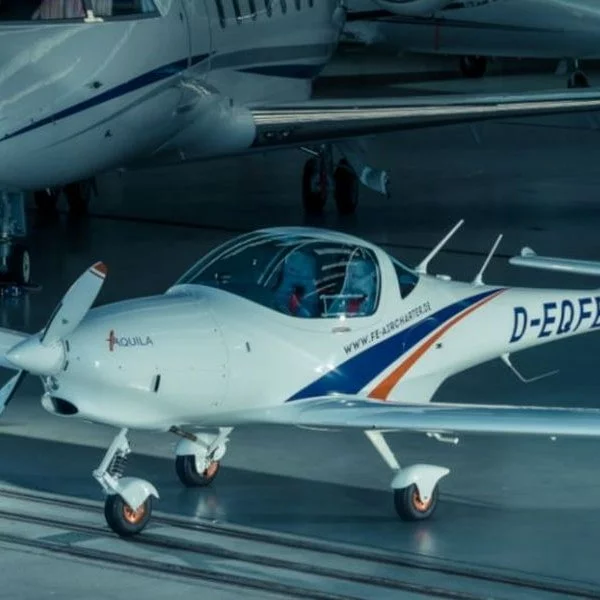

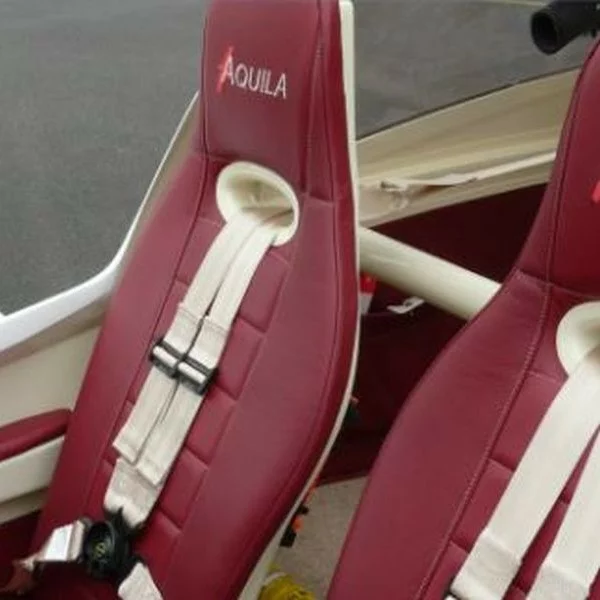

The AQUILA A211 is a single-engine airplane in composite construction & designed for cruising & training. It is equipped with two side-by-side seats, low wings & a cruciform tail. The spacious, enclosed cockpit provides sufficient room even for tall pilots. Complete glazing of the canopy allows an excellent all-round vision. Baggage compartment capacity & loading is meeting even the highest demands. Low fuel consumption & a high cruising speed allow a range that is exceptional in this category of aircraft. Being well below future noise limits will allow aircraft operation at any airfield without any problems. After the approval of the Service Bulletin SB-AT01-010 by the EASA on March 25. 2010, the A210 & A211 can be operated under Day-VFR-conditions & under Night-VFR-conditions. Additional equipment must be installed for NVFR-operation.

Type:
Airplane (Single Engine Piston)
Manufacturer:
Aquila Aviation
Model:
A211
Year:
New
Serial Number:
TBA
Reg. Number:
TBA
Total Time:
Delivery Hours Only
Seats:
2
Price:
Price upon request

Filters Sort results
Reset Apply
Price:
Enquire
Aircraft Model & Manufacturer:
Year:
2023
Total Time:
1
Registration Number:
TBA
Serial Number:
TBA
Seats:
2
Aircraft Location:
Contact Name:
Marco Intelisano
  MESSAGE SELLER

Categories:

Description

ENGINE:
Bombardier Rotax 912S
Cylinders 4
Rated power 100 HP 73,5 kW
Max. take off power and max. continuous power A211 95 HP 69 kW
TBO 2.000 h 15 years

PROPELLER:
MT-Propeller 2-blade constant-speed-propeller MTV-21-A/170-05, TBO 2.000 h/ 6 years

PERFORMANCE:
Max. speed 165 kts 190 mph
Max. level speed, MSL 130 kts 150 mph
75%
5.000 ft
ISA 55%
5.000 ft
ISA
Speed (TAS) 121 kts 140 mph 103 kts 118 mph
Range (+ 45 min rsv) 535 NM 615 mi. 620 NM 715 mi.
Endurance (+ 45 min rsv) 4:30 hrs 6:05 hrs
Fuel-flow 21,5 ltr/h 5.7 gph 16,6 ltr/h 4.36 gph
Stallspeed clean VS1 49 kts 56 mph
Stallspeed in landing
configuration VS0 39 kts 45 mph
Max. demonstrated crosswind 15 kts 17 mph
Rate of climb, sea level 750 ft/min 3.8 m/s
Service ceiling 14.500 ft 4.450 m

WEIGHTS & CAPACITIES:
Empty weight, typical from 500 kg from 1,102 lb
Max. takeoff weight 750 kg 1,653 lb
Useful load (at standard equipment) 250 kg 551 lb
Max. baggage weight 40 kg 88 lb
Max. wing loading 71.4 kg/m² 14.6 lb/sqft
Seats 2
Fuel capacity
100LL or Eurosuper 95 2 x 60 ltr 2 x 16 gal (US)

TAKEOFF & LANDING DISTANCES:
Takeoff distance, ground roll 250 m 820 ft
Takeoff distance over 50 ft
obstacle 430 m 1,410 ft
Landing distance, ground roll 200 m 650 ft
Landing distance over 50 ft
obstacle 500 m 1,640 ftGuide to adding images for gallery
