New Exodus Aircraft DeltaJet 500 StingRay Microlight Aircraft For Sale

Tandem two-seat flexwing aircraft with weight-shift control. Rogallo wing with keel pocket & winglets. Pilot suspended below wing in trike unit, using bar to control pitch & roll/yaw by altering relative positions of trike unit & wing. Wing braced from below by struts; floating cross-tube construction with 86% double-surface Xlam covering; 22 battens on the top surface, 8 battens on the undersurface. Electrically operated moveable hang-point trim system. Undercarriage has three wheels in tricycle formation; coil-spring suspension on nosewheel & aerodynamically enclosed one-piece beam suspension on mainwheels. Push-right go-left nosewheel steering independent from aerodynamic controls. Adjustable foot pedal positions. All-terrain wheels & tyres. Hydraulic disc brakes on nose wheel (optional mainwheels only, or all three wheels). Aluminium-alloy tube trike unit with GRP body (carbon fibre optional). Engine mounted below the wing, driving pusher propeller.

Type:
Airplane (Microlight)
Manufacturer:
Exodus Aircraft
Model:
DeltaJet 500 StingRay
Year:
New
Serial Number:
TBA
Reg. Number:
TBA
Total Time:
Delivery Hours Only
Seats:
2
Price:
Price upon request

Filters Sort results
Reset Apply
Price:
Enquire
Aircraft Model & Manufacturer:
Year:
2023
Total Time:
1
Registration Number:
TBA
Serial Number:
TBA
Seats:
2
Contact Name:
John Waite
  MESSAGE SELLER

Categories:

Description

Performance
Stall Speed at MAUW 39 mph
Trim Speed: 49 – 90+ mph
Max Straight & level: 112 mph
Never Exceed Speed: 117 mph
Cruise Speed: 80 mph
Rate of Climb at MAUW: 1050 ft/min
Minimum Sink Rate at MAUW: 500 ft/min @ 48 mph
Best Glide Ratio (power off): 8.02/1 @ 60mph
Take-off distance to clear 15 m obstacle: 242 m on wet grass*
Landing distance to clear 15 m obstacle: 219 m on wet grass*

Wing
Wing Area 12.85 sq. m
Wingspan 9.52 m
Nose angle 128˚
Aspect Ratio: 7.05/1

Trike
Empty Weight 252 kg
Max Take-off weight 499 kg
Maximum Payload 247 kg
Minimum Pilot Weight: 55 kg
Individual Seat Load 120 kg
Overall Length 3.30 m
Overall Height 2.75 m
Wheel track 1.66 m
Wheelbase 1.75 m
Wheels 42 cm dia. overall.

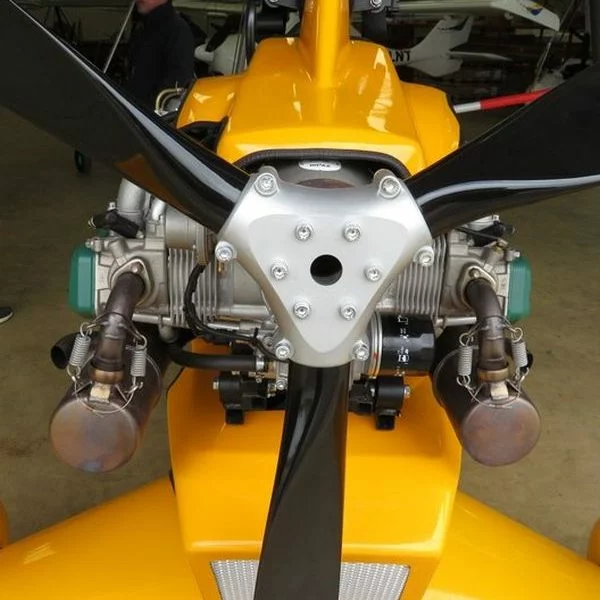

Engine
BMW R1200 or Rotax 912ULS
Fuel Consumption 13 lph
Fuel Capacity 53 l
Kiev propeller – 283/1800 or 183/1800

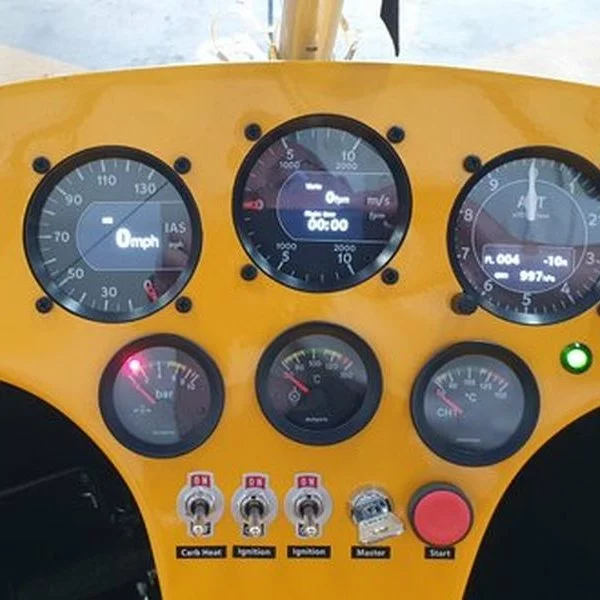

Advanced Instrumentation
We have selected the Kanardia Indu range of electronic instruments for the main flight units. These state-of-the-art devices mimic classical instrument display formats but underpin it with modern electronics. The result is the best of both worlds for the pilot; perfect & intuitive analogue readings combined with high precision digital readouts.

Each instrument analogue display is configured to show the correct warning levels for the DeltaJet StingRay 500, such as Rotax rpm limits & stall, manoeuvring & Vne on the Airspeed indicator. The Rev Counter also stores & displays engine run time on the LCD display while the Altimeter shows the pressure information & corresponding flight level.

These advantages don’t come at the expense of unnecessary weight, with each instrument weighing just 210g.
