New Extra Aircraft 330 LX Aeroplane For Sale

The EXTRA 330 LX is a two-seated arrangement, low-wing aerobatic monoplane with conventional (traildragger) landing gear, offering exceptional aerobatic performance. Perfect for competition and aerobatic flying school.

Type:
Airplane (Single Engine Piston)
Manufacturer:
Extra Aircraft
Model:
Extra 330 LX
Year:
New
Serial Number:
TBA
Reg. Number:
TBA
Total Time:
Delivery Hours Only
Seats:
2
Price:
Price upon request
  MESSAGE SELLER

Description

AIRFRAME:
Carbon fibre wing assembly with integral tank
Carbon composite empennage structure
Fuselage assembly, 1.7734 steel
Steerable, lightweight tailwheel
Fiberglass landing gear spring
Two-seat bubble canopy
Carbon pushrods
Titanium firewall

POWERPLANT AND PROPELLER:
Lycoming AEIO-580-B1A, 315 hp, 6 cylinder engine
Muehlbauer, MTV 9-B-C/C198-25, 3-blade propeller
Two fuel pumps (1 engine-driven, 1 electric)
Gomolzig, 6-in-1 exhaust system
Single oil cooler system
Electric starter

COCKPIT:
Manually adj. rudder pedals with differential toebrakes
Contour moulded composite seat, adjustable
Front and rear seat Hooker safety harness with ratchet
Forward rudder pedals with differential toebrakes
Adjustable composite rear seat, contour moulded
fixed composite front seat, contour moulded
2 front and 2 rear bezel-operated air vents

SYSTEMS:
Two fuel pumps (1 engine-driven, 1 electric)
Strobe / navigation lights at wing tips
Electric stall warning system
Pitot static system drain
Trickle charger socket
65 Amp alternator
12V battery

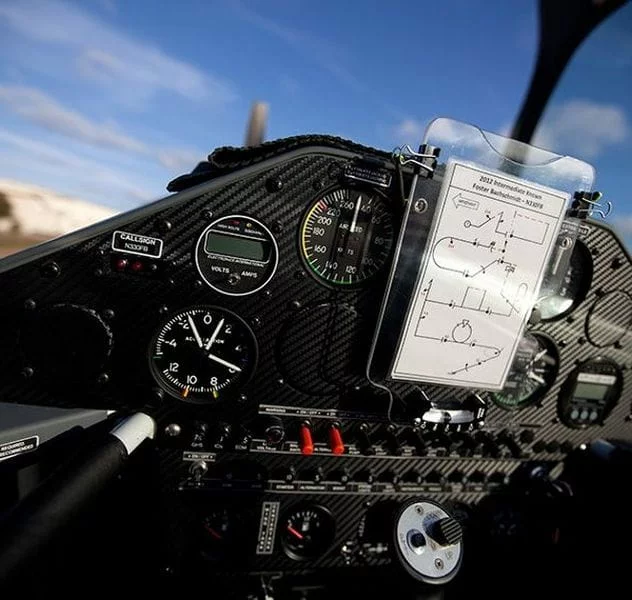

STANDARD PANEL EQUIPMENT:
Airspeed indicator (kts)
Altimeter (ft, inHg/hPa)
Mechanical accelerometer
Magnetic compass
Slip and skid indicator, with holder if req’d
Digital RPM indicator
Analog fuel gauges
Analog CHT/EGT, oil press./oil temp. gauges
Digital V/A indicator

AIRCRAFT DIMENSIONS:
wingspan 26,3 ft / 8,0 m
length 22,8 ft / 6,9 m
height 8,6 ft / 2,6 m
wing area 115,2 ft2/ 10,7 m2
FAA / EASA certified load factor +/- 10 g

WEIGHTS:
typ. equipped empty weight 1.455 lbs / 660 kg
MTOW normal category (+6/-3g) 2.095 lbs / 950 kg
MTOW two-pilot acro (+8/-8g) 1.918 lbs / 870 kg
MTOW single-pilot acro (+10/-10g) 1.808 lbs / 820 kg

AIRSPEEDS:
never exceed speed (Vne) 220 kts
manoeuvring speed (Va) (acro) 158 kts
stall speed at 1.808 lbs / 820 kg (Vs) 55 kts
stall speed at 2.095 lbs / 950 kg (Vs) 60 kts

FUEL:
total capacity 49,9 gal / 189 ltr
usable fuel 49,4 gal / 187 ltr
usable fuel – acro tanks only 17,7 gal / 67 ltr
