SW-51 Mustang Aircraft For Sale

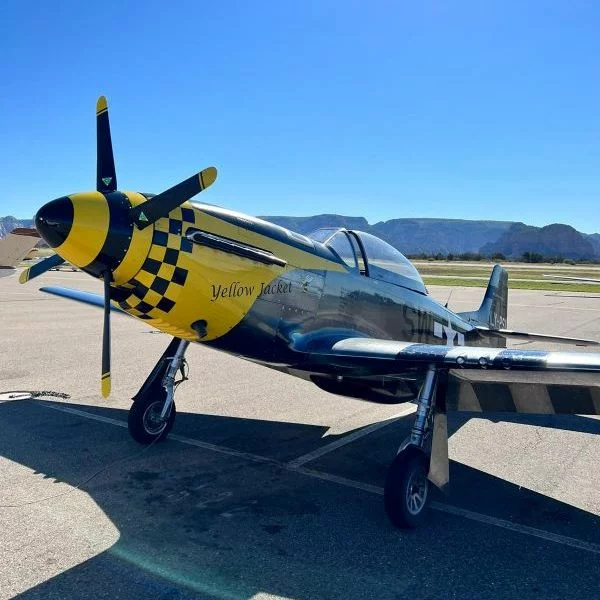

The SW-51 Mustang is an accurate replica of the legendary P-51 Mustang. A 70% true-to-scale aircraft in classic aluminium appearance, perfected from all-carbon design. More than 100,000 textures of the original aircraft embedded in all airframe surfaces create the ultimate reincarnation of the legendary icon. A perfect blend of classic style & cutting-edge technology. The aircraft features a Rotax 915iS Turbo engine, a Garmin G3X glass cockpit combined with classic analogue gauges, & an optional Ballistic Rescue System (Galaxy GRS). Climb rate exceeds 1,500 ft/min, with a design Vne of 216 kts (400 km/h).

Type:
Airplane (Military)
Manufacturer:
ScaleWings Aircraft
Model:
SW-51 Mustang
Year:
New
Serial Number:
TBA
Reg. Number:
TBA
Total Time:
Delivery Hours Only
Seats:
2
Price:
Price upon request

Filters Sort results
Reset Apply
Price:
Enquire
Aircraft Model & Manufacturer:
Year:
2023
Total Time:
1
Registration Number:
TBA
Serial Number:
TBA
Seats:
2
Aircraft Location:
Contact Name:
Christian von Kessel
  MESSAGE SELLER

Categories:

Description

Ultimate Flying
Unique ramp appeal – more than 100.000 surface details
Classic style wrapped in advanced safety & performance
Precise control, harmonic balance & high manoeuvrability
Great take-off & landing handling
Highly efficient engine package
An exhilarating flying feeling

Equipment / Cockpit Panel
Airspeed indicator (kts)
3-pointer altimeter (20,000 ft)
Magnetic compass
Slope indicator
Variometer
Garmin G3X (optional)

Systems
Ballistic Rescue System (optional) by GRS Galaxy
Heating & ventilation
12V LiFePo4 batterie
Electric retractable landing gear
Electric landing flaps
Visual & acoustic laning gear warning system
Hydraulic disc brakes with parking lock

Attributes
Vintage: scale & original 70% replica of the historic P-51 Mustang
Accommodates pilots from 150 cm / 4 ft 11” to 200 cm / 6 ft 7”
Comfortable cabin Width of 58 cm / 23”
Large luggage compartment
Easily removable outer wings for easy road transport & storing in limited hangar space

Cockpit
Aramid reinforced carbon leather seats & leather seat cushion
Adjustable rudder pedal (front)
5-point belts
Toe brakes (front)
Adjustable ventilation nozzles
Electric trim (pitch & rudder)
Charging plug 12 DC

Fuel
Two fuel sorts: MOGAS or AVGAS suitable with Rotax 915iS
Two fully redundant fuel pumps
Two Centre wing tanks, 2 x 50 l / 13 USG (standard)
Proven & Tested

Data & Dimensions
Wingspan – 7.9 m / 311“
Length – 6.88 m / 280“
Height – 1.97 m / 78“
Wing area – 11 m² /118 ft²
Aspect ratio – 5.6
MTOW – 750kg(+) Experimental
Vne – 216 kts (400 km/h)
Max. Loads – +6/-4 g
Fuel tanks – 2 x 50 l (13 USG)

Cell & Materials
Carbon fibre honeycomb sandwich shells
Additional carbon aramid cockpit inner frame (personal protection)
Carbon fibre sandwich Fibre composite structure
Sturdy carbon windscreen frame as roll bar (personal protection)
Electrically retractable chassis
Fire-resistant steel/carbon firewall to engine compartment
Canopy can be moved & folded
Carbon fibre steering linkage
