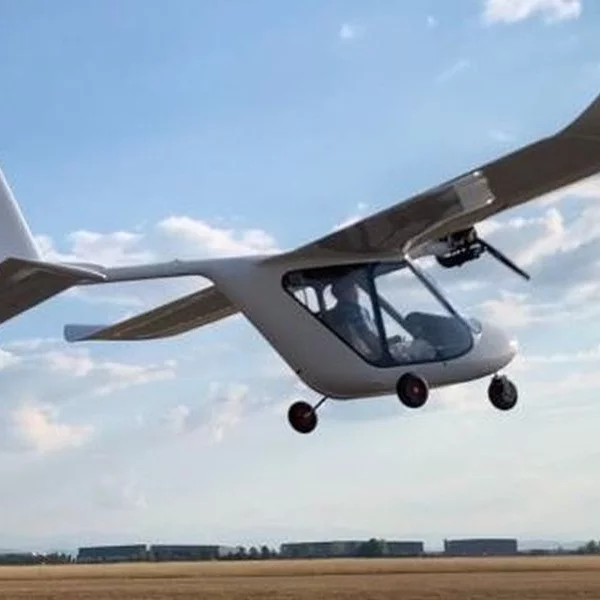

New AVI Aircraft SWAN 120 SW Ultralight Aircraft For Sale
SWAN 120 SW (short wings) was designed & created by the AVI Aircraft engineering team to satisfy a large range of needs for our customers. It is a single seat ultralight airplane, designed to comply with FAR Part 103 in USA & with LTF-L in Germany. For the US market, it is sold under the name SWAN 103. For the European market, the empty weight is 120 kg, including a recovery parachute & the ULM name is SWAN 120 SW.
| Type: Airplane (Ultralight) |
|---|
| Manufacturer: AVI Aircraft |
| Model: SWAN 120 SW |
| Year: New |
| Serial Number: TBA |
| Reg. Number: TBA |
| Total Time: Delivery Hours Only |
| Seats: 1 |
| Price: €29,000 + VAT |
Description
Standard Version Features
Airframe manufactured using vacuum formed and thermally treated parts from carbon fibre /glass fibre with epoxy resin.
Aviation raw materials provided by German suppliers.
Foldability Features
Each wing can be folded by removing 1 screw;
Horizontal & vertical stabilizers can be folded by removing 2 screws each;
Back part of the fuselage can be folded by removing 2 screws;
Full disassembly of the aircraft can be done in less than 10 minutes by 1-2 persons.
Aircraft Features
Elevons (flaperons) all over the wingspan, without flap movement (Vs0 = 74 km/h).
Adjustable rudder pedals, for pilots between 1,50 m and 2,0 m tall. Pilot & luggage maximum weight = 116 kg.
Fixed Kevlar ergonomic pilot seat, positioned under the aircraft centre of gravity (aircraft balance doesn’t change no matter the weight of the pilot). Pitch trim is not needed.
POLINI THOR 303 Engine: 2 stroke, 38 HP, liquid cooled, dual spark, helicoidal teeth in oil bath with 1 : 3,2 reduction ratio, counterbalanced shaft to reduce vibration, electric starter, centrifugal clutch
E-PROPS carbon propeller 1,5 m diameter
Front landing gear manufactured from 7075 aviation aluminium alloy with 4.00 – 4″ (300 mm diameter x 100 mm width) plastic wheel, Veloce tire and SHIMANO hydraulic brake.

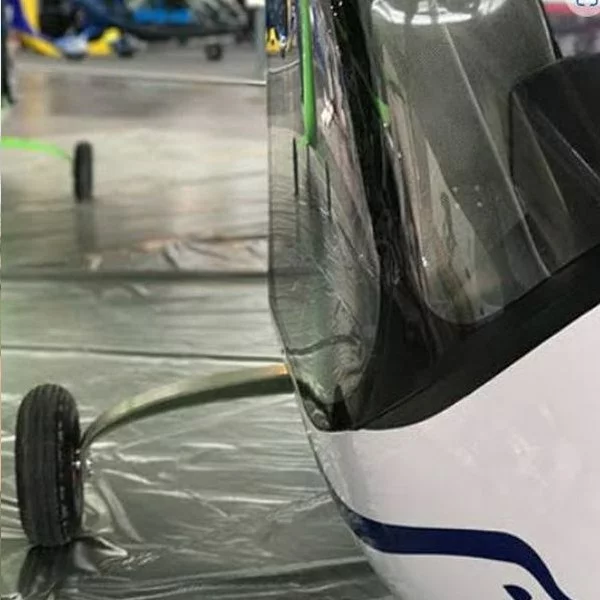

Main landing gear manufactured from glass fibre/epoxy resin with 4.00 – 4″ plastic wheels and Veloce tires, no braking system.
Technical Specifications
Wing span – 6.860 m
Wing area – 10.28 m
Length – 5.30 m/folded 3.30 m
Height – 2.59 m/folded 1.85 m
Wheel base – 1.580 m
Empty weight, without parachute – 111 kg
Empty weight, with parachute – 118 kg
Maximum take-off weight – 250 kg
Load factors – +4G/ -2G
Landing Gear Optional Features and Prices
4.00 – 8″ (400 mm diameter x 100 mm width) instead of standard wheels:
weight – +2 kg
price – €300
extra set of 4.00 – 8″ (400 mm diameter x 100 mm width) wheels:
weight – 2 kg
price – €900
Engine Options and Prices
Polini Titanium Exhaust:
weight – – 1.0 kg
price – €899
4 Stroke Wankel Engine Aixro:
power – 35 hp/7.000 rpm;
weight – + 1.2 kg;
price – €3,125.
Lithium Battery with overvoltage protection relay on the charging circuit:
weight – – 0.8 kg;
price: – €300.
Other Optional Features
Electric movement of flaps (Vs0 = 63 km/h):
weight – +2 kg
price – €1,300
Rescue parachute system GRS 4/260, up to 260 kg at 260 km/h:
weight – + 7,0 kg
price – €3,300
Second door right side:
weight – + 0,9 kg
price – €700
TQ KRT2 (8,33/25 kHz frequency spacing) installed radio with antenna:
weight – + 0,8 kg
price – €1,700
Assembly & disassembly of the radio & antenna for flight tests (for those who do not buy radio):
price – €200
TQ KTX2 installed Transponder:
weight – + 0,8 kg
price – €2,300
Red/blue SWAN 120 decorations:
weight – + 0,3 kg
price – €400
Cabin heating and defroster:
weight – + 0,4 kg
price – €500
Note: All options do not include local VAT.
