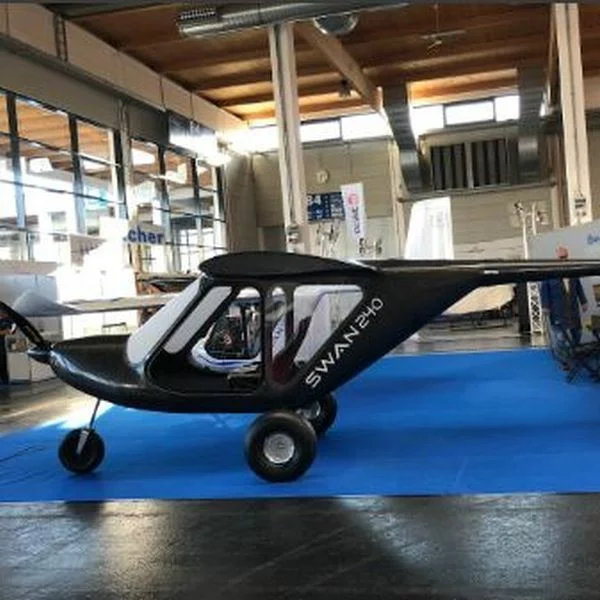

New AVI Aircraft SWAN 240 ULM Ultralight Aircraft For Sale

Description

Standard Version Features
ROTAX 912 UL (80 HP) engine with AVI stratified wood propeller (CNC machined).
Adjustable rudder pedals (240 mm) for pilots between 1.50 m & 2.00 m tall. No rudder pedals for passenger.
Steering front wheel 4.80/4.00 – 8″ (400 mm diameter/100 mm large).
Electric flaps.
Electric pitch trimmer.
IFD-NET EFIS, 80 mm diameter, IFD-NET EMS, 80 mm diameter.
Magnetic compass.
One control stick in the middle of the cockpit.
AVI kevlar/carbon ergonomic seats.
Two ventilations in the doors. No heating.
Fiberglass main landing gear with 16 x 6.50 – 8″ wheels (420 mm diameter/140 mm large).
Hydraulic symmetrical brake on main wheels from the control stick.

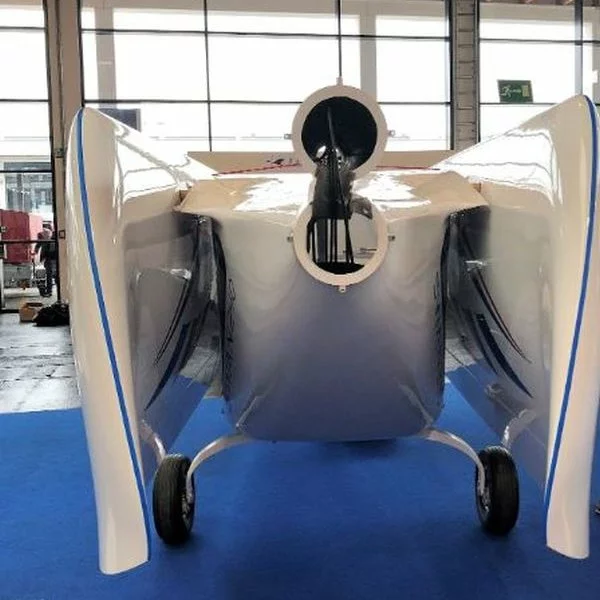

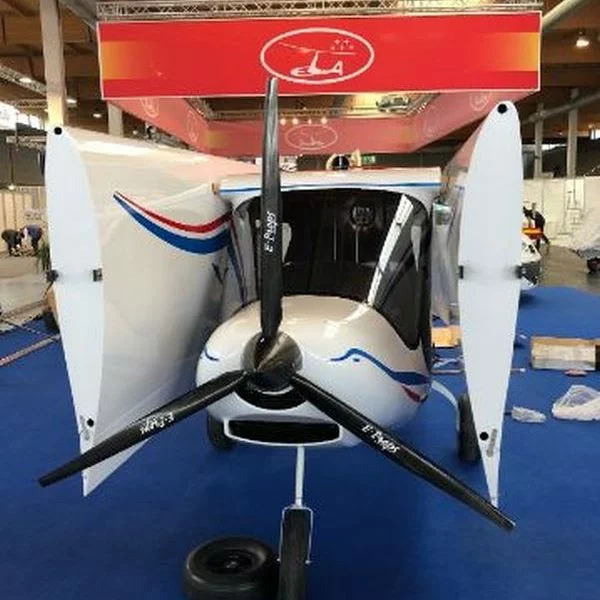

Foldability Features
Each wing can be folded by removing 3 screws.
Horizontal & vertical stabilizers can be folded by removing 3 screws each.
Back part of the fuselage can be folded by removing 3 screws.
Full disassembly of the aircraft can be done in less than 10 minutes by 1-2 persons.
SWAN two seats dimensions when folded – 4 m long x 1.8 m width x 1.9 m height.

Variants
There are three variants of SWAN two seats in order to comply with the new European rules where MTOW can be from 450 kg to 600 kg (depending of the national rules of each member state) & also with LSA rules in USA (light sport aircraft). The standard empty weight of this variants is different because the internal structure of the aircraft is different, to match +4G/-2G for each MTOW. Beside SWAN’s name, each variant has a number showing the standard empty weight of that particular variant.

SWAN 240 is the variant with the standard empty weight of 240 kg & MTOW up to 480 kg.
SWAN 270 has a standard empty weight of 270 kg & MTOW up to 540 kg.
SWAN 300 has a standard empty weight of 300 kg & a MTOW of 600 kg.

Each particular two seats SWAN can have a slightly different empty weight than the number after SWAN’s name, depending of the options on the particular aircraft.

Technical Specifications
Wing area – 11.64 sq.m
Wing Aspect Ratio – 6.66
Flapperons Area – 0.76 sq.m
Horizontal Stabiliser Area – 1.8 sq.m
Vertical Stabiliser Area – 0.82 sq.m
Standard Empty Weight – 240 kg
Maximum take-off weight – 480 kg
Fuel Capacity – 63 l
Load factors – +4G/-2G
Take-off Roll – 90 m
Landing – 80 m
Range – 750 km
Stall Speed – 52 km/h
Cruise Speed – 170 km/h
Max. Level Speed – 210 km/h
Climb Rate – 5 m/s

Options & Prices
Recovery parachute GRS:
weight – +15 kg
price – €4,870

Transparent top of cabin:
weight – +3 kg
price – €720

E-Props ground adjustable carbon propeller, 3 blades:
weight – -0.6 kg
price – €880

E-Props carbon spinner:
weight – +0.4 kg
price – €270

Rotax cooling liquid thermostat:
weight – 0.4 kg
price – €280

Rotax oil thermostat:
weight – +0.3 kg
price – €230

Rotax air box:
weight – +1.3 kg
price – €725

Rotax 912 ULS engine (100 HP):
weight – +1.2 kg
price – €2,400

Rotax 912 iS engine (100 HP, injection):
weight – +6.5 kg
price – €5,200

Second rudder pedals (right):
weight – +0.7 kg
price – €380

Two control sticks left/right (without central control stick):
weight – +1.1 kg
price – €720

Radio TQ (Dittel) KRT2 with antenna:
weight – +0.6 kg
price – €1,415

Transponder TQ KTX2:
weight – +0.8 kg
price – €1,990

Front wheel 16 x 6.50 – 8″ (420 mm x 140 mm):
weight – +1.5 kg
price – €170

Main wheels Tundra 21 x 12.00 – 8″ (540 mm x 200 mm):
weight – +4.6 kg
price – €880

Main wheels & brakes Beringer:
weight – +4.2 kg
price – €1,120

Fairings for 3 standard wheels:
weight – +3.3 kg
price – €870

Note: All Options do not include local VAT
