New Diamond DA40 Tundra Star Single Engine Piston Aircraft For Sale

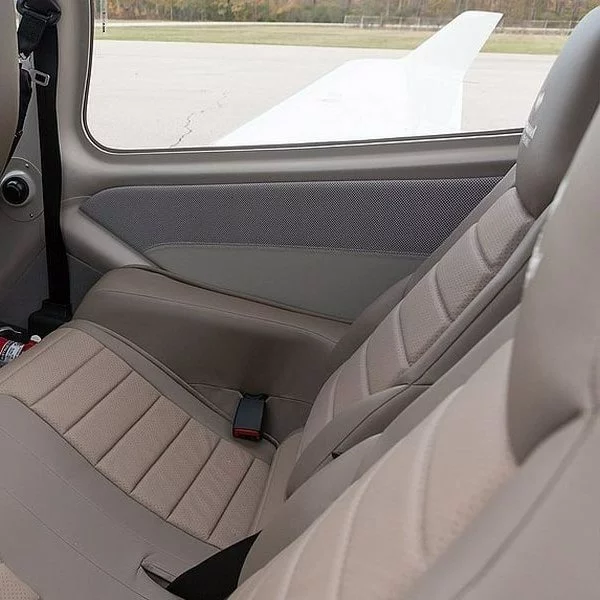

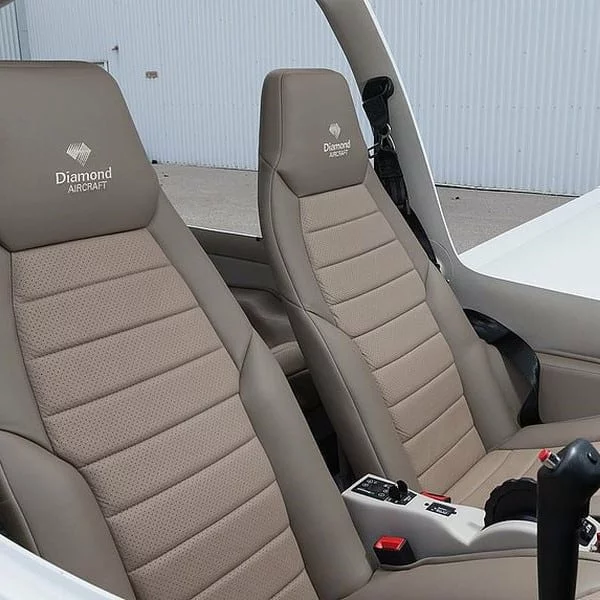

The DA40 TUNDRA blends rugged backcountry versatility with excellent cross-country speed & lots of room for people & gear. The freedom of backcountry flying is one of the most rewarding & pleasurable flying pursuits. The spacious 4-seater cabin with folding rear seat backs, large forward opening canopy & huge rear door, offers the optimum in loading flexibility. Fly fishing rods, guns, tents, skis, snowshoes, even mountain bikes, & plenty more gear all fit the DA40.
| Type: Airplane (Single Engine Piston) |
|---|
| Manufacturer: Diamond |
| Model: DA40 Tundra Star |
| Year: New |
| Serial Number: TBA |
| Reg. Number: TBA |
| Total Time: Delivery Time Only |
| Seats: 4 |
| Price: Price upon request |
Description
Engine
Austro Engine AE 300 turbocharged common-rail injected 2.0 litre diesel engine with 168 HP and EECU single lever control system
Propeller
MT propeller MTV-6-R/190-69 3-blade constant speed propeller
Fuel grades
Jet A-1, Jet A, TS-1 (Russia, Ukraine), RT (Russia, Ukraine), No. 3 Jet Fuel (China), JP-8
Dimensions, Mass & Loading
Length 8.06 m / 26 ft 5 in
Height 1.97 m / 6 ft 6 in
Wingspan 11.63 m / 38 ft 3 in
Seats 4
Empty weight 900 kg1 / 1,984 lbs1
Useful load 410 kg1 / 904 lbs1
Max. take off mass 1,310 kg / 2,888 lbs
Fuel capacity with long range tanks 147 lt / 118 kg / 39 US gal / 261 lbs
Fuel Capacity without long range tanks 106 lt / 84 kg / 28 US gal / 188 lbs
Performance (Max. Mass)
Max. speed (16,000 ft, MCP) 285 km/h TAS / 154 kts TAS
Cruise speed at 60% (14,000 ft) 230 km/h TAS / 124 kts TAS
Stall speed, landing configuration 111 km/h IAS / 60 kts IAS
Rate of climb (ISA SL) 3.6 m/s / 707 ft/min
Range at 60% (incl. long range tanks, 14,000 ft) 1,756 km / 948 nm
Fuel consumption at 60% 19.5 lt/hr / 5.1 US gal/hr
Take-off ground roll (ISA SL) 397 m / 1,302 ft
Landing ground roll (ISA SL) 318 m / 1,043 ft
Max. operating altitude 5,000 m / 16,400 ft
Max. demonstrated crosswind 46 km/h / 25 kts
