GP 11 E Pulse Glider For Sale

The GP 11 E Pulse is the basic, ultralight (empty weight under 120 kg without battery) 13,5 m, affordable electric self-launcher, created by GPG for every soaring enthusiast from beginner to senior pilot without valid medicals. It’s made to enjoy gliding & to make it more accessible & easier than ever before. The name PULSE evokes the heartbeat & the positive emotions associated with sailing the skies.

Type:
Aircraft (Glider)
Manufacturer:
GP Gliders
Model:
GP11 E
Year:
New
Serial Number:
TBA
Reg. Number:
TBA
Total Time:
TBA
Seats:
1
Price:
Price upon request

Filters Sort results
Reset Apply
Price:
Enquire
Aircraft Type:
Aircraft Model & Manufacturer:
Year:
2023
Total Time:
Not Listed
Registration Number:
Not Listed
Serial Number:
Not Listed
Seats:
1
Aircraft Location:
Seller:
Contact Name:
Jerzy Peszke
  MESSAGE SELLER

Categories:

Description

This GP 11 E Pulse Glider For Sale is characterized by outstanding in this weight category flight parameters, very easy & safe piloting with stall & spin-free properties, as well as effortless & convenient on-ground handling & rigging. It boasts a simplified flapless control systems & fixed, faired main landing gear.
The ship is standardly equipped with very effective ESLS – front mounted 20 kW motor Electric Self-Launching System with foldable 2-blade propeller, powered by 5,19 kWh Li-Ion battery, developed in partnership with MGM ComproTM & Rotex ElectricTM companies for independence & autonomy. There are also fully automatic control systems connections for ease of assembling & security.

The clever design & execution of airframe results in very light & strong ship, capable of handling G-loadings of +4/-2 & guarantees excellent thermal ling & climbs.
In spite of its compact design & lightweight it is very safe & comfortable. Like every other GP GLIDER there is parachute Ballistic Recovery System (BRS) & crashworthy, spacious cockpit with DynafoamTM seat cushioning.
The pilot oriented option list offers everything one may require to have fun, feel safe & comfortable with the sailplane. Technical specifications of this GP 11 E Pulse Glider For Sale include:

FLIGHT PERFORMANCE DATA
VNE: 108 kts 200 km/h
L/D: 43 (51 kts) 43 (95 km/h)
G limit: 4,0/-2,0 4,0/-2,0
Wing loading: 6,12-7,09 lb/ft2 29,9-34,6 kg/m2
Min. sink speed: 42 kts (6,12 lb/ft2) 77 km/h (29,9 kg/m2)
Min. sink rate: 1,03 kts (6,12 lb/ft2) 0,53 m/s (29,9 kg/m2)
Speed at 2,0 m/s (3,89 kts) sink rate: 88-91 kts (6,12-7,09 lb/ft2) 163-168 km/h (29,9-34,6 kg/m2)

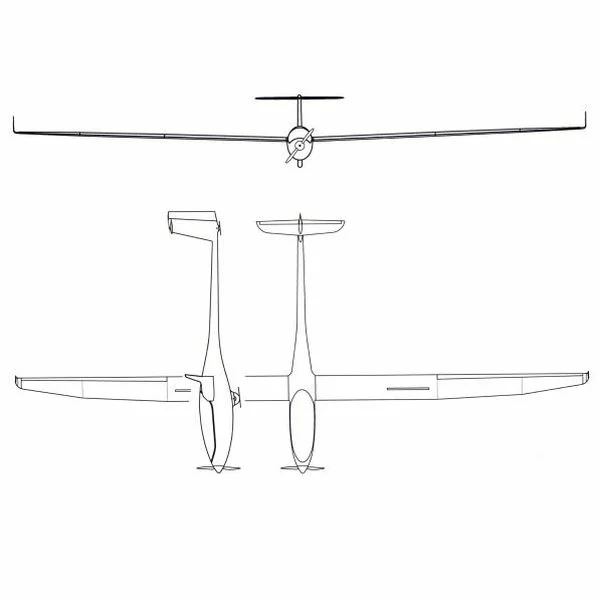

DIMENSIONS & WEIGHTS
Wingspan: 44,29 ft 13 500 mm
Horizontal stabilizer span: 6,96 ft 2 120 mm
Length: 20,80 ft 6 340 mm
Height: 4,02 ft 1 224 mm
Wing area: 79,65 ft2 7,4 m2
Aspect ratio: 24+ 24+
Empty weight: 331 lb* 150 kg*
Max. take-off weight: 564 lb* 256 kg*
* Approximate weights (dependent on battery size & selected options)

PROPULSION SYSTEM
ESLS – Electric Self-Launching System
Motor power: 20 kW (15 kW continuous)
System voltage: 120V
Removable, Gen. 3, “A” battery pack integrated in fuselage with forced air-cooling
Technology: Li-Ion
Usable battery capacity: 5,19 kWh
Operational battery capacity: 4,73 kWh (10% buffer to preserve battery life)
Weight: 31 kg (68 lb)
Motor glider’s self-launch & climb performance on a single charge, equipped with “A” battery pack (TOW: 225 kg [496 lb]):
7 x take-off & climb to 500 m (1 640 ft) altitude
or 1 x take-off & climb to 500 m (1 640 ft) altitude + 200 km (124 mi) range
or 1 x take-off & total climb to 4 250 m (13 940 ft)
Max. climb rate: >4,7 m/s (>9,14 kts)
Ground-roll take-off distance: 140 m (153 yards)
